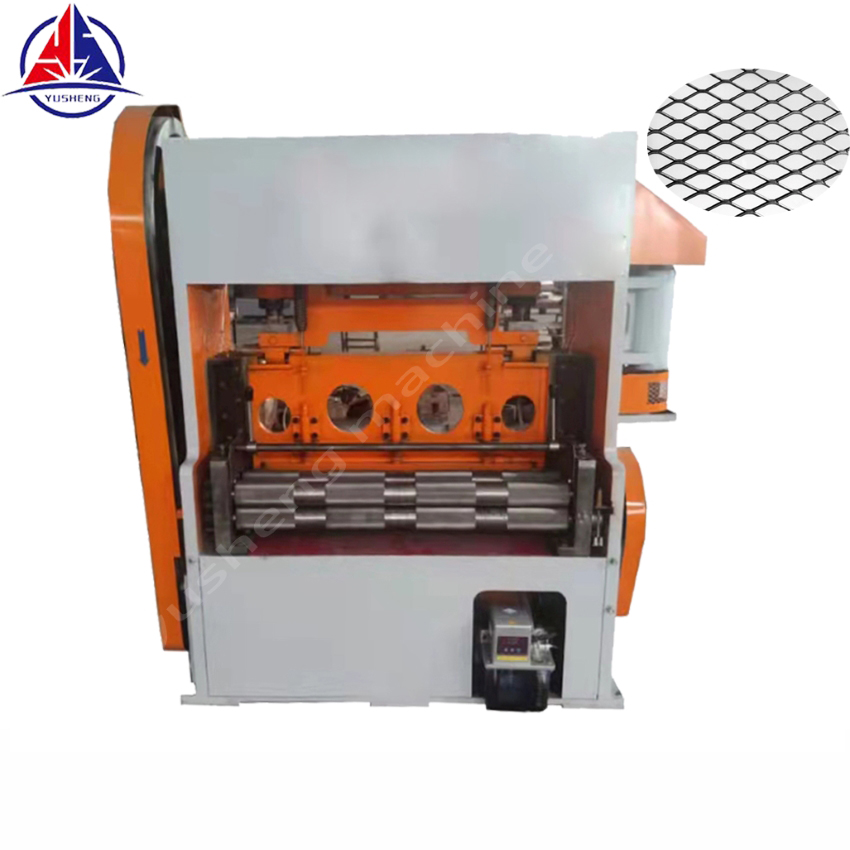

YS25-16 Expanded metal mesh machine

New improved CNC type expanded metal mesh machine

Description :

It is suitable for the material such as low carbon steel sheet, aluminum sheet, stainless steel sheet, aluminum magnesium alloy sheet, copper sheet, Nickel sheet stretching and slitting .

Advantage:

1,3D modeling design to make sure  machine have perfect performance.

2,PLC control to make operation easy and machine run stable.

3,Step or servo motor feeding material to make materail feeding more precise.

4,Automatic lubricating system to save operation  time and avoid some parts           worn because of short of lubrication oil.

Usage:

The finished product light type expanded metal mesh widely use for filter, stereo shield,decoration,arts and crafts, covering screen for first class sound case etc

Technique details as flows

Model

YSJQ-16A

Nominal Force

160KN

Working material width

Max 1000mm

Material feeding way

From both coils and sheet

Punching material thickness

Max 1.0mm

Mesh hole size

Max LWD 30mm

Distance of feeding

0-5mm

Number of stroke

260-280strokers/min

Motor Power

4.0KW

Overal diamension

1940x1600x 2010MM

Net Weight

2.5tons

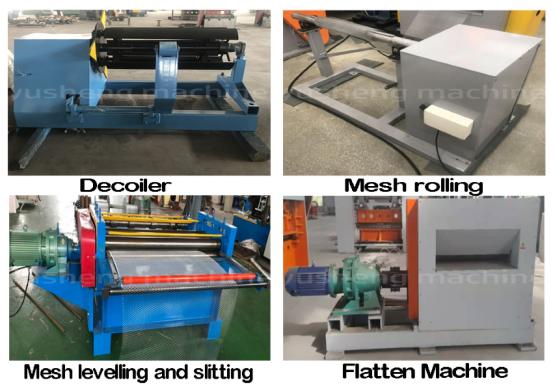

Accessory equipments

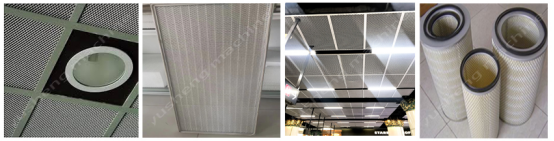

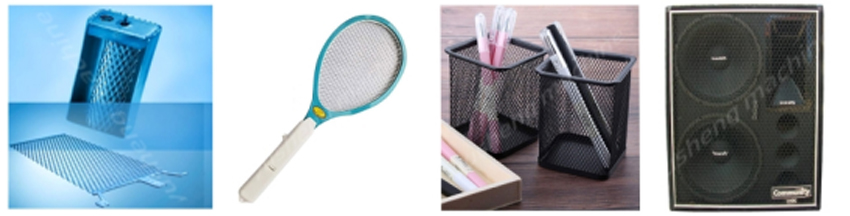

Finished product usage

The finished product light type expanded metal mesh widely use for filter, stereo shield,decoration,arts and crafts, covering screen for first class sound case etc
