Expanded metal machine
Product category

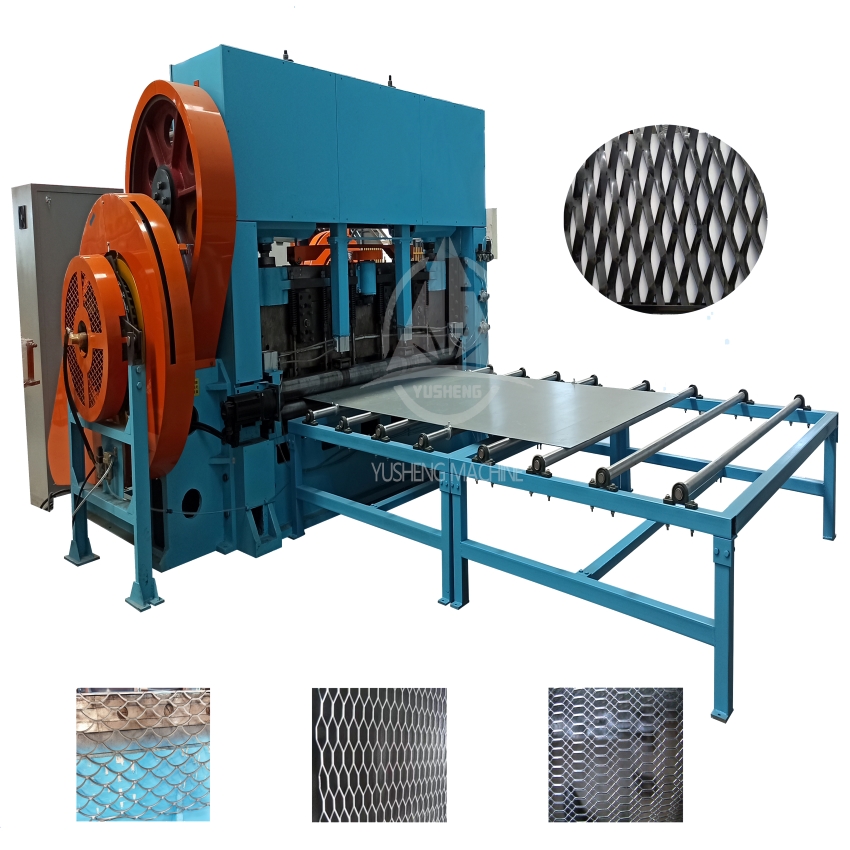

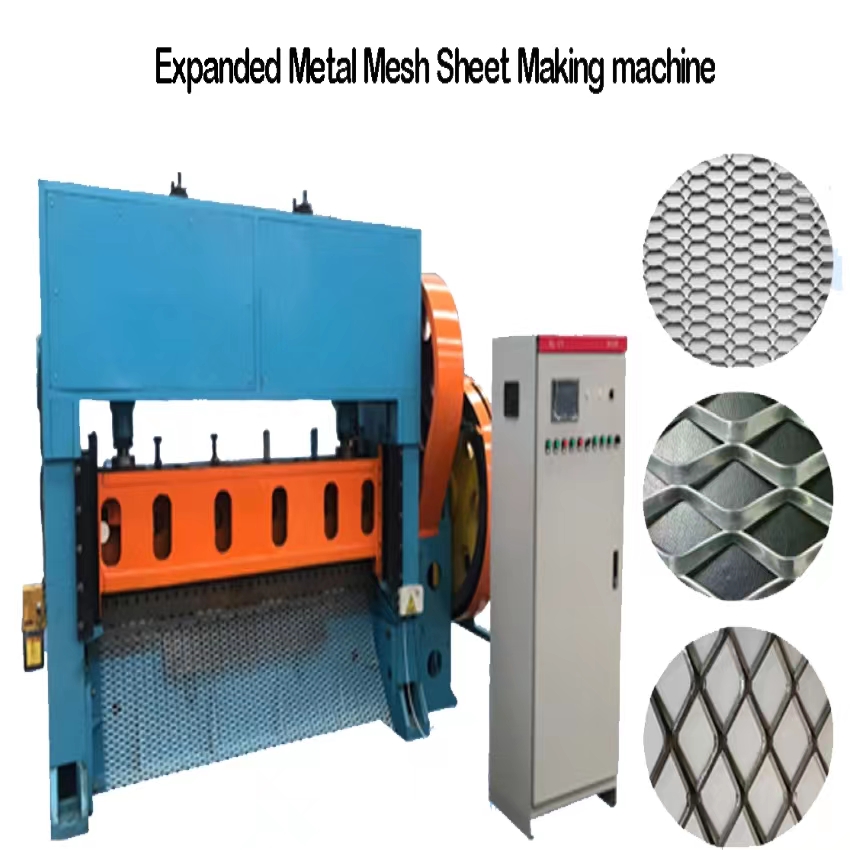

YS25-100 Expanded metal mesh machine

New improved CNC type expanded metal mesh machine

Description :

It is suitable for the material such as low carbon steel sheet, aluminum sheet, stainless steel sheet, aluminum magnesium alloy sheet, copper sheet, Nickel sheet stretching and slitting .

Advantage:

1,3D modeling design to make sure  machine have perfect performance.

2,PLC control to make operation easy and machine run stable.

3,Step or servo motor feeding material to make materail feeding more precise.

4,Automatic lubricating system to save operation  time and avoid some parts           worn because of short of lubrication oil.

Usage:

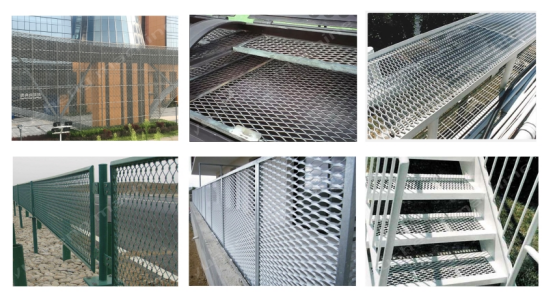

The finished product heavy type expanded metal mesh used for step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships.Industry and civil architecture, road, railway.


Technique details as flows

Model

ys25-100

Nominal Force

1200KN

Working material width

Max 2500mm

Material feeding way

From sheet

Punching material thickness

6.0mm

Mesh hole size

Max LWD 200mm

Distance of feeding

0-20mm

Number of stroke

55-80strokers/min

Motor Power

22KW

Overal diamension

Main machine L3600xW2500xH3000mm

Material feeding equipment:L2500XW1800XH650MM

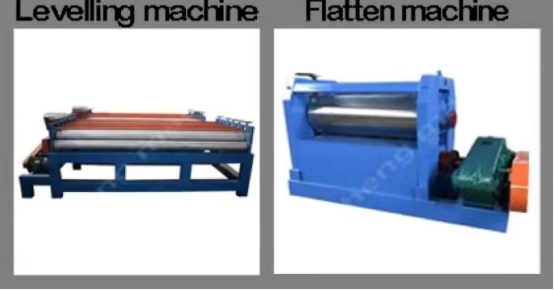

Accessory equipment
