Chain link fence machine
Product category

Double wire feeding type

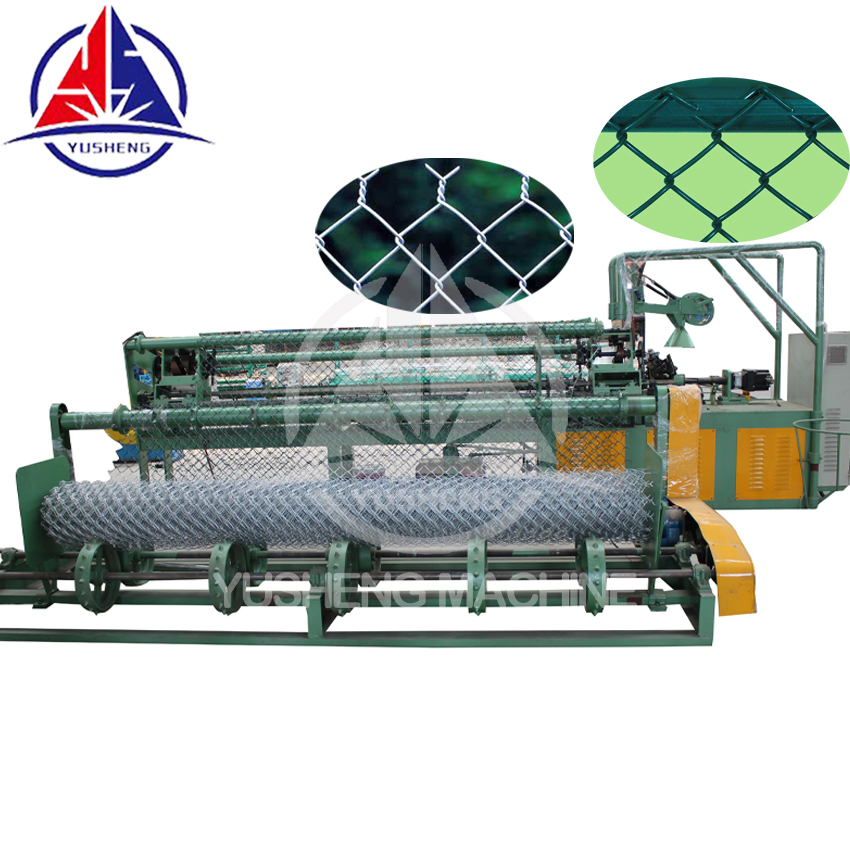

Full automatic chain link fence machine

Description :

It is suitable for high quality low-carbon wire, galvanized wire, pvc cpated wire, aluminum alloy wire, aluminum-clad steel wire, stainless steel wire etc.

Advantage:

1. It covers small area

2. The machine is controlled by PLC automatic controller, easy to operate.

3. Single die double spiral

4. Automatically weaving mesh

5. The chain link fence is automatically wond to form rolls when the desired length is manufactured.

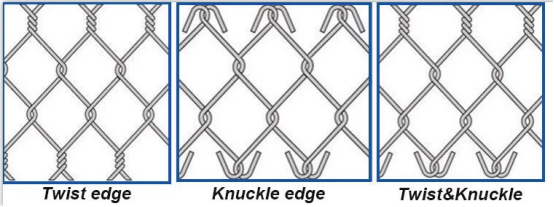

6. One side or both sides of the end of the mesh is twisted or knuckled as required


Usage:

The finished chain link mesh is used as fencing for sports field, river banks, construction and residence, also animal fencing. Especially, well suitable for a wide range of application, for example for enclosing Lawn, Road. Steel diamond mesh has a heavy galvanized coating to ensure a long life.

Double wire feeding type


Technique details as flows

Feeding No.

Two

Wire Diameter(MM)

1.8-4.0

Mesh Size(MM)

35*35-120*120

Net Width(M)

2-6 (can choice)

Speed(m2/h)

80-160



Single wire feeding type


Technique details as flows

Feeding No.

One

Wire Diameter(MM)

1.2-4.0

Mesh Size(MM)

25*25-140*140

Net Width(M)

2-6 (can choice)

Speed(m2/h)

50-140


Chain Link fence Compacting Machine.
