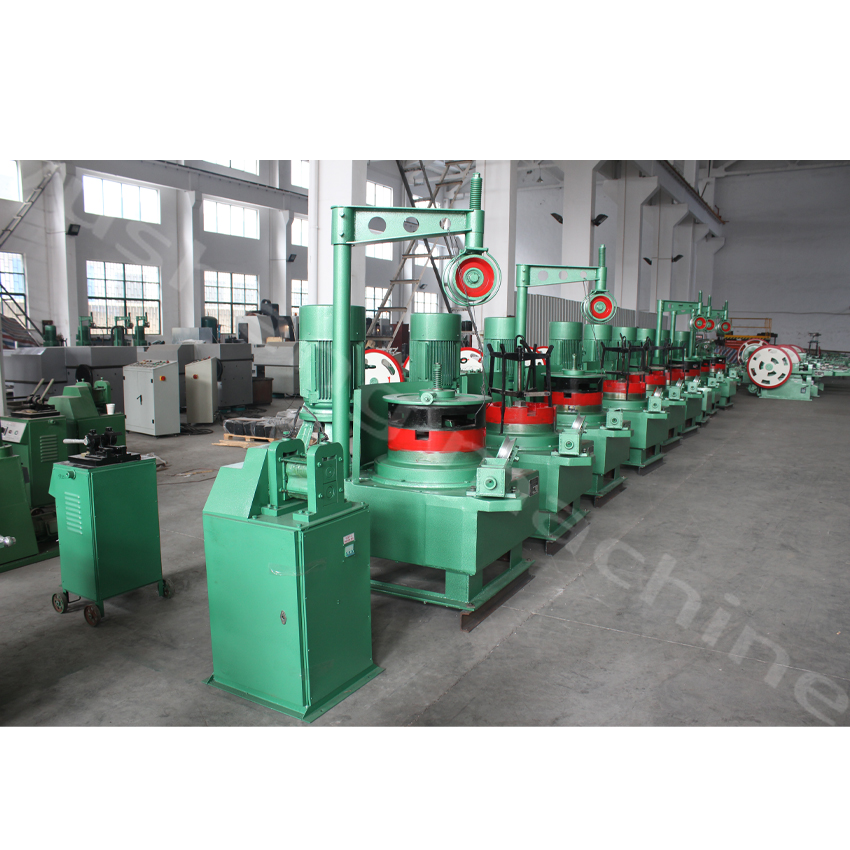

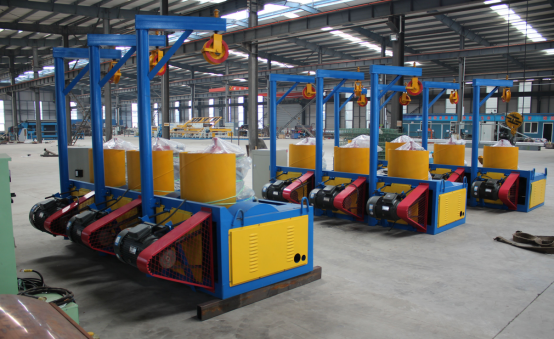

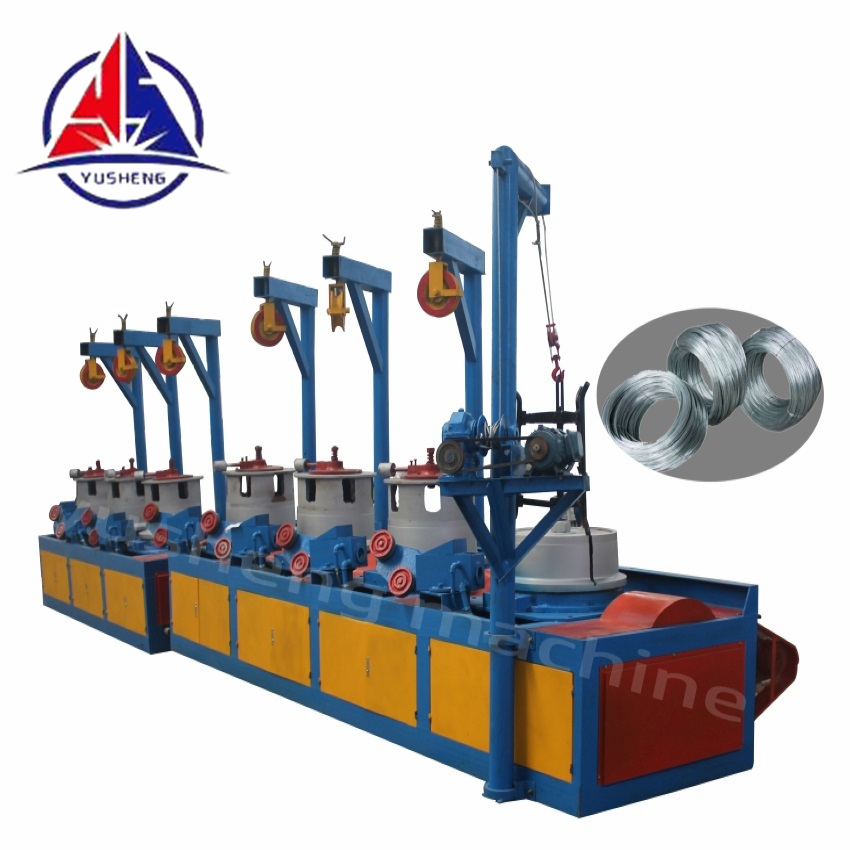

    Dry type Continuous wire drawing machine

    Dry type Continuous wire drawing machine


    Introduction:The set of the machine is a ideal equipment drawing wire stock high,medium and carbon steel ,as well as copper,aluminum,and alloy.The machines are applied to drawing wire in the factories such as wire-steel factory,metal mesh factory and nail making factory etc.


    Model

    Unit

    560

    450

    350

    Inlet wire Tensile Strength

    kg/mm2

    δ>110

    128

    δ>140

    Max Dia. of Inlet Wire

    mm

    6.5

    3.4

    2.5

    Min Dia. of Outlet Wire

    mm

    2

    1

    0.75

    Drawing passes

    ______

    1-6

    1-7

    1-6

    Diameter of block

    mm

    560

    450

    350

    Max average compressibility

    %

    30

    20

    21

    Designed total compressibility

    %

    78-88.5

    77.9

    78

    Max speed block

    M/min

    245

    346.9

    200

    Motor Power/Block

    kw

    18.5-30

    7.5-11

    7.5-11

    Weight

    kg

    2000

    1500

    1000

    size

    mm

    1700x115x1750

    1520x81x1700

    1400x800x150

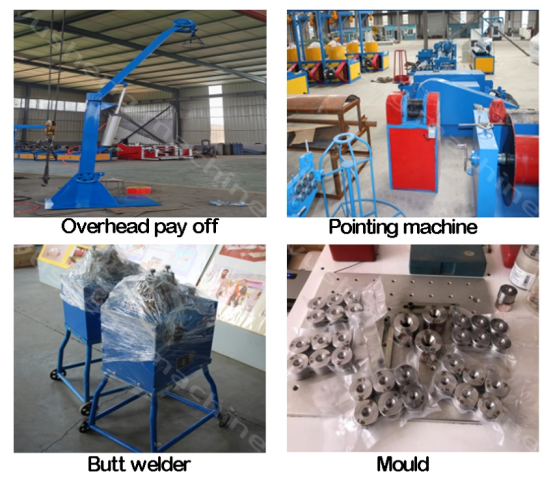

    Accessory parts
