    WET TYPE WIRE DRAWING MACHINE

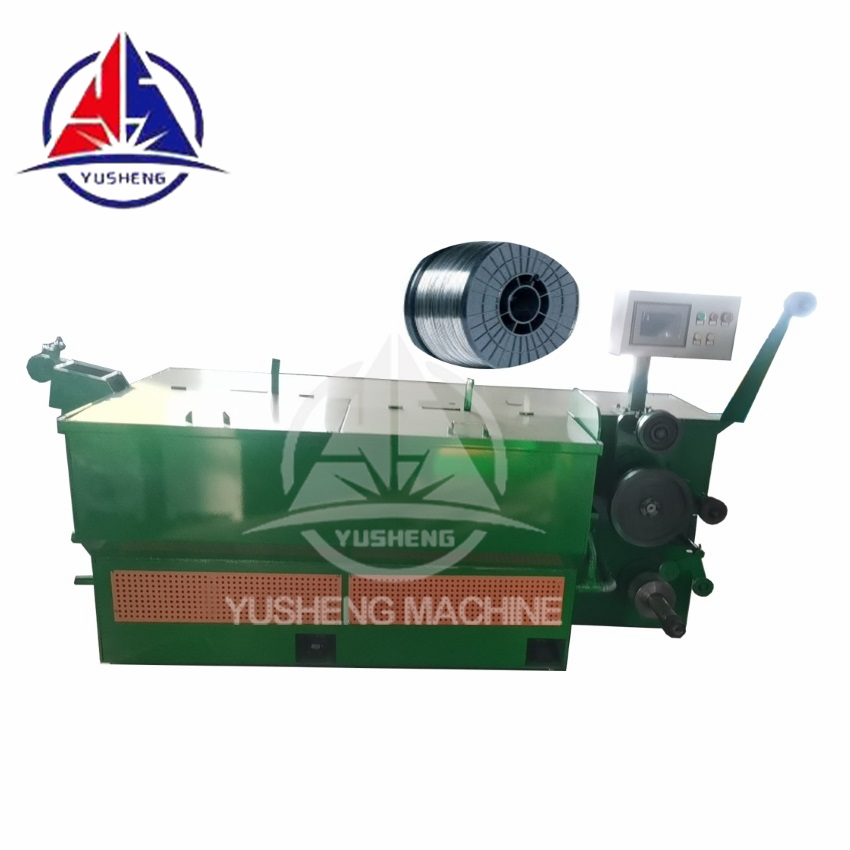

    Wet type /Water tank type wire drawing machine


    Usage

    It is used for drawing wire from 3.5mm to 1max mm.

    Technique parameter

    Model

    Unit



    WT560



    WT360



    WT250

    Max Dia. of Inlet Wire

    mm

    3.5

    2.8

    1.2

    Min Dia. of Outlet Wire

    mm

    1.4

    1.0

    0.4

    Drawing passes

    ______

    13

    15

    10

    Slipping ring motor

    ____

    6grade

    6 grade

    6 grade

    Max average compressibility

    %

    15

    15

    15

    Max speed block

    M/second

    5

    5

    10

    Motor Power

    kw

    55

    37

    15

    Weight

    kg

    3000

    2000

    1800

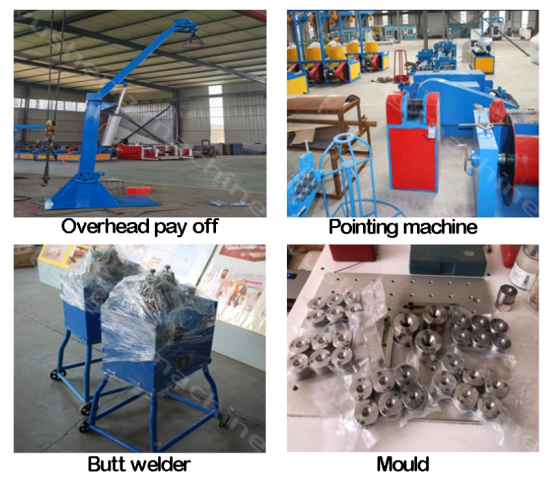

    Accessory parts
