    Straight line wire

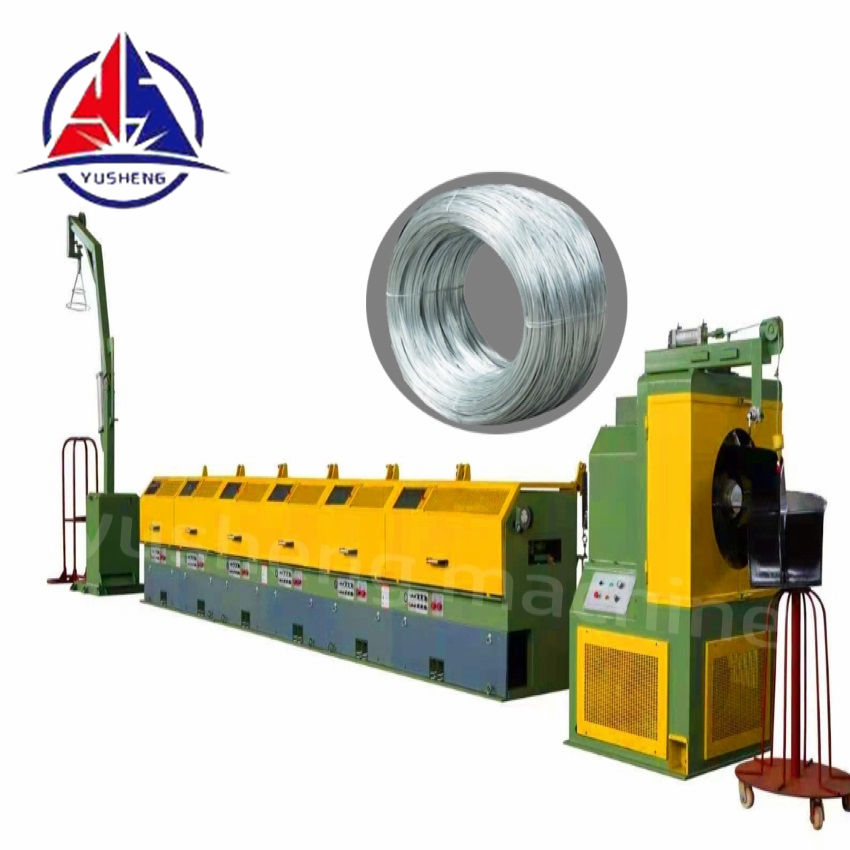

    Straight line wire drawing machine


    Introduction:The high carbon wire straight line wire drawing machine is different from the ordinary wire drawing machine, it adopts AC frequency conversion control technology or DC programmable control system and screen display, with high degree of automation, convenient operation and high quality of drawing products. It is suitable for drawing various metal wires with diameter less than 12 mm.


    Technique parameter



    Model

    LZ400

    LZ560

    LZ600

    LZ800

    Capstan diameter

    400mm

    560mm

    600mm

    800mm

    Drawing dies

    9

    9

    9

    9

    Inlet wire diameter

    Φ2.5-4.5 mm

    Φ5.5-6.5 mm

    Φ6.5-8.0 mm

    Φ8.0-10.0 mm

    Outlet wire diameter

    Φ0.8-1.4 mm

    Φ1.6-2.0 mm

    Φ2.0-3.0 mm

    Φ2.8-3.5 mm

    Drawing speed

    10-16 m/s

    8-12 m/s

    6-12 m/s

    6-10 m/s

    Total reduction rate

    90.32%

    90.53%

    90.53%

    90.53%

    Motor power

    11-15 kw

    30-37 kw

    30-37 kw

    37-75 kw

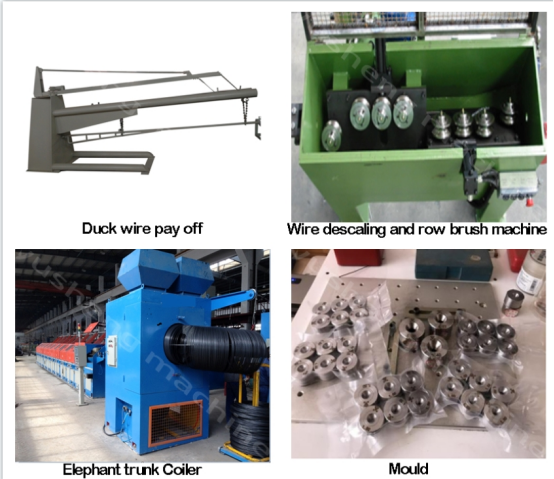

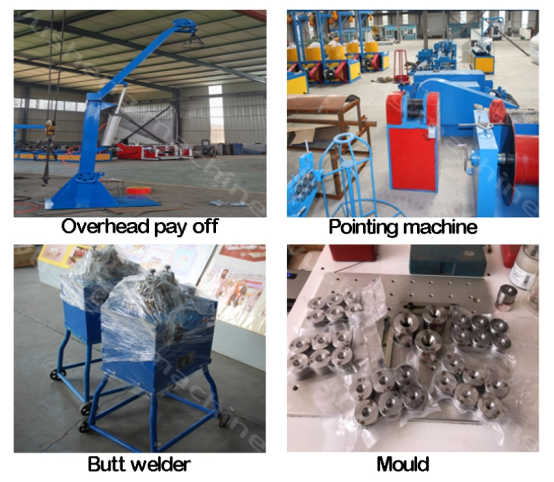

    Accessory parts
