Crimped wire mesh machine
Product category

5-12mm Hydraulic type crimped wire mesh machine

Crimped wire mesh machine

Description:

Multifunction crimped wire mesh weaving machine,which weft wire is fed by shuttless line propolsion which can be crimped and woven at one time during production,line wire pre-crimped.It can weave wire diameter range 0.5-2.0mm,and the aperture 1-20mm.Semi automatic crimped wire mesh weaving machine is mainly used as weaving square mine sieve mesh with thick wire.Both weft wire and line wire need to be crimped by the crimping machine in advance before weaving.It can weave wire diameter2-14mm, and aperture is 4-100mm,the weaving width can be woven up to 4m.

Advantage:

1. full automatic crimped wire mesh machine made can finish a series of procedures from roiling wire to knitting the mesh automatically. The mesh width is 0.9-2.5m, the wire table is 0.4-1.0mm, and the knitting speed reaches 53 per minute. It has the characteristics of time and energy saving, high speed, and one-step molding.

2. Multifunction crimped wire mesh machine: compact structure, low noise, and high efficiency.

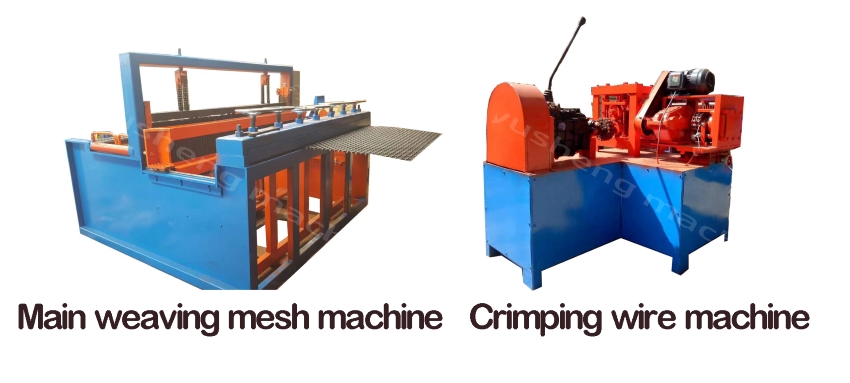

3. Semi automatic crimped wire mesh machine:

This machine is the use of a large diameter wire by ginning machines for rolling into shape,weaving various mechanical specifications for the square hole sieve series weaving machines.

The product structure compact,easy to operate,can be woven mesh sizes 2-100mm,wire diameter 2-14mm weaving width of 1-4 meters.



Usage:

The finished products are widely used in mining for classification purposes sieve,commonly known as the mine screen net,also as fence ect.



Technique details as flows

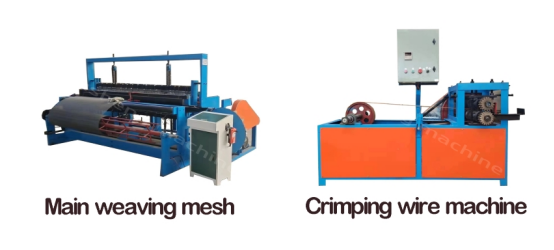

Multifunction crimped wire mesh machine

wire diameter

0.5-2.0mm

Mesh size

1-30mm

width

900-2500mm

Motor power

3kw

Production speed

45times/min

Rated voltage

380V 50HZ

weight

2.5T

Outside size

4000x2200x1400mm





Semi automatic crimped wire mesh machine

Crimped Wire Mesh Machine

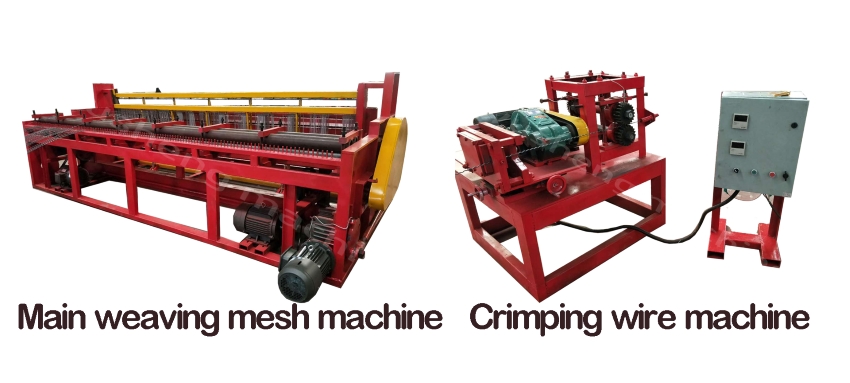

Mechanical Crimped Wire Mesh Machine

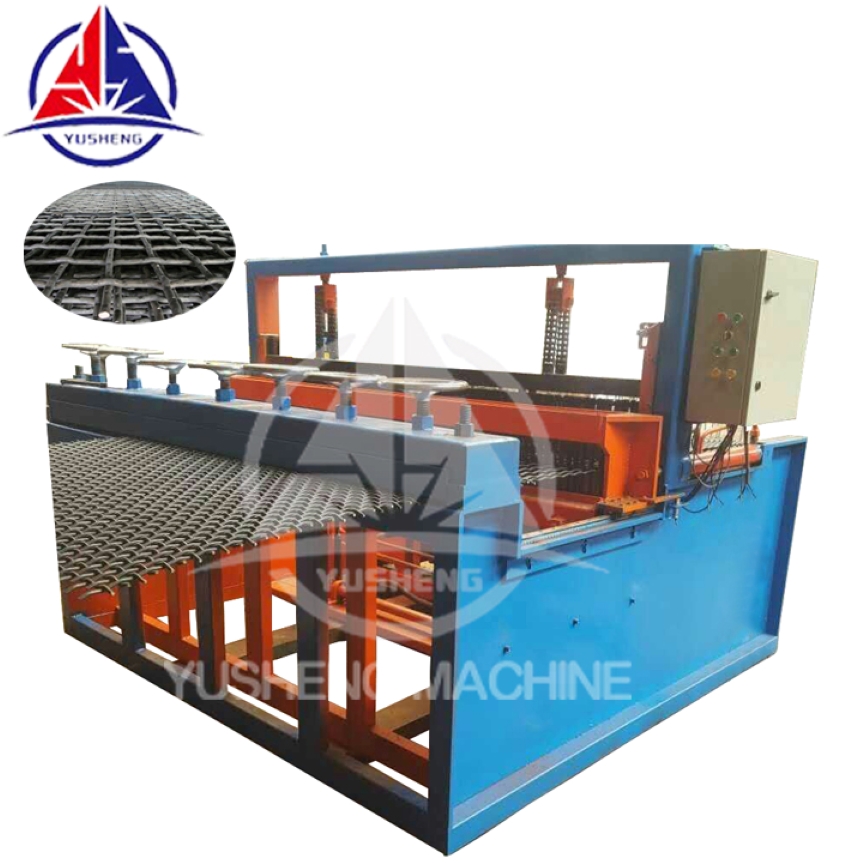

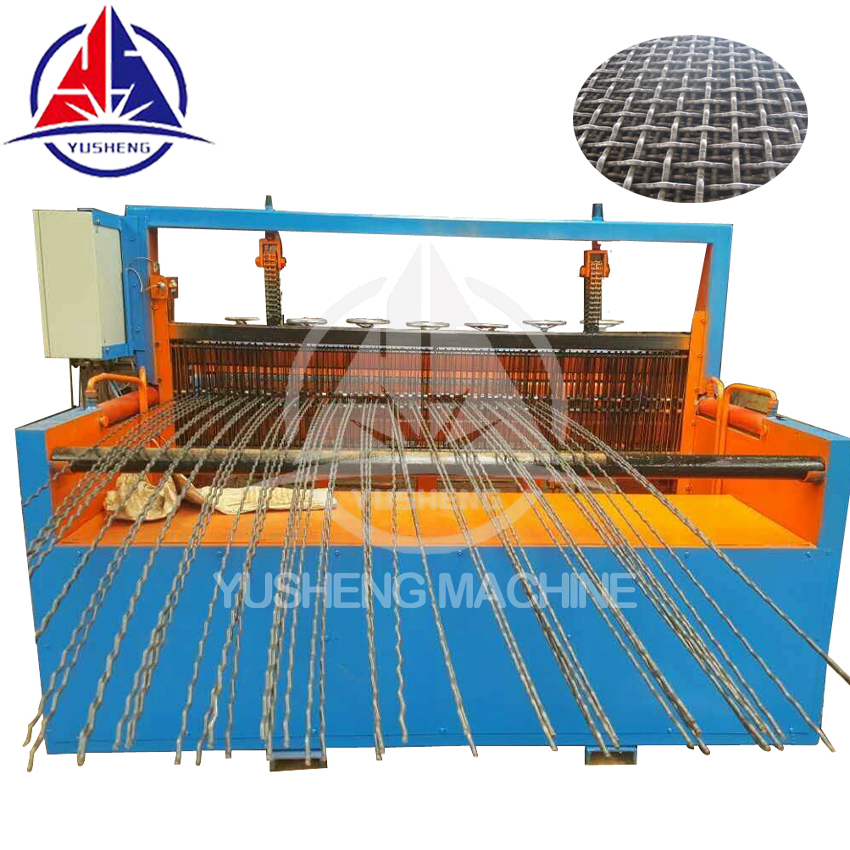

Hydraulic Crimped Wire Mesh Machine

Wire diameter

2-6mm

Wire diameter

6-14mm

Mesh opening

3X3-50X50mm

Mesh opening

10X10-100X100mm

Net width

Max. 4000mm

Net width

Max. 4000mm

Production speed

30 times/min

Production speed

30 times/min

Motor power

6.0 kw

Motor power

11.0kw

Rated voltage

380V 50HZ

Rated voltage

380V 50HZ

Weight

3.0T

Weight

3.2T

Outside size

5000x2200x1800mm

Outside size

5000x2200x1500mm
