Nail making machine
Product category

Nail making machine

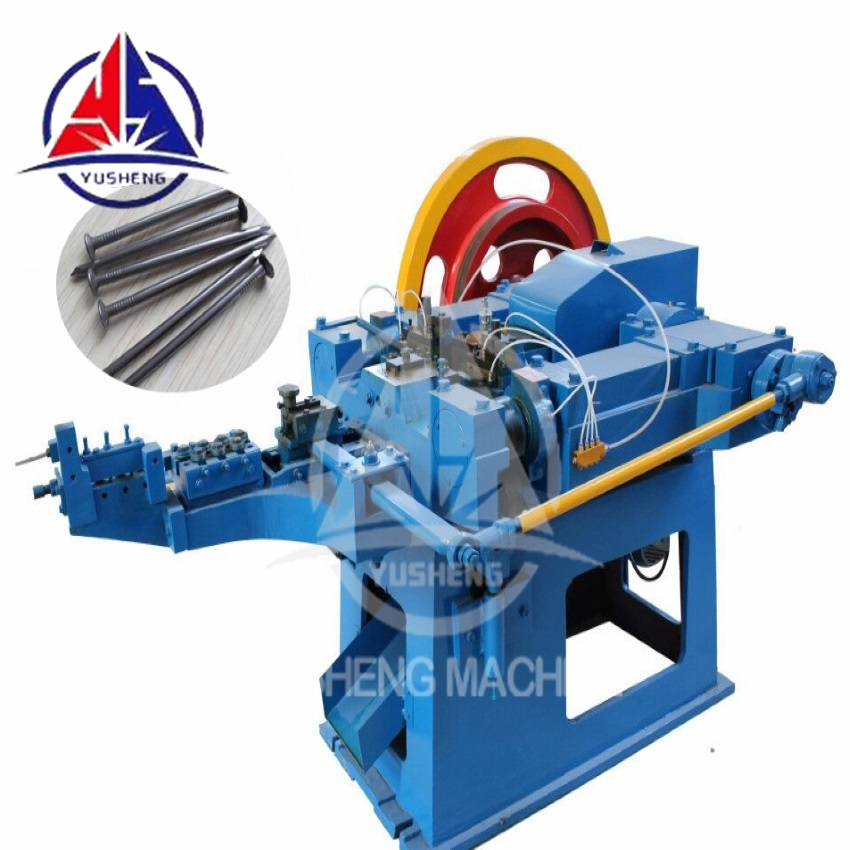

Automatic Nail making machine

Description:

This new type machine adopts plunger and oil pipe lubricating structure to ensure the high working speed, low noise and less impact. Especially, it can make the high quality coil nails used in the nail gun. It has the features of advanced design, compact conformation, and attractive appearance. It is easy and safe to operate.

Technique parameter

Type

YS1C

YS2C

YS3C

YS4C

YS5C

YS6C

Dia of nail max(mm)

2.0

2.8

3.4

4.5

5.5

6.5

Dia of nail min(mm)

0.9

1.2

1.8

2.8

3.1

3.4

Length of nail max(mm)

25

50

75

120

152

250

Length of nail min(mm)

9

16

30

50

70

100

Productivity(pcs/min)

460

320p

300

280

180-220

160-200

Motor power

1.5kw

2.2kw

3kw

4kw

5.5KW

11kw

Weight

1200kg

1450kg

1800 kg

2000 kg

2600KG

5500KS

Overal diamension (mm)



1500x1300

x1200



1700x1300

x1400



2000x1400

x1400



2200x1600

x1650



2600x1700

x1700



3250x1850

x1800

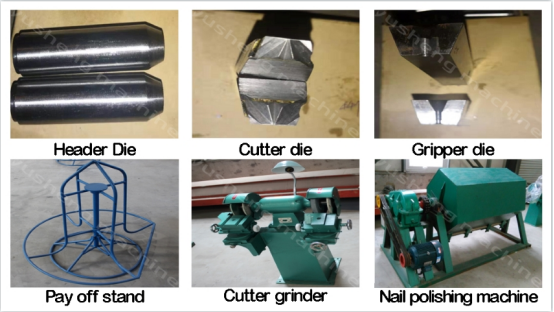

Accessory parts as flows


High speed Nail Making Machine

Type

YS1C

YS2C

YS3C

Dia of nail max(mm)

3.0

3.5

4.1

Dia of nail min(mm)

2.2

3.0

3.5

Length of nail max(mm)

100



Length of nail min(mm)




Productivity(pcs/min)

1500

1500

1200

Motor power

5.5kw

5.5kw

7.5kw

Weight

1200kg

1450kg

1800 kg

Overal diamension (mm)



1500x1300

x1200



1700x1300

x1400



2000x1400

x1400
