High speed Nail making machine

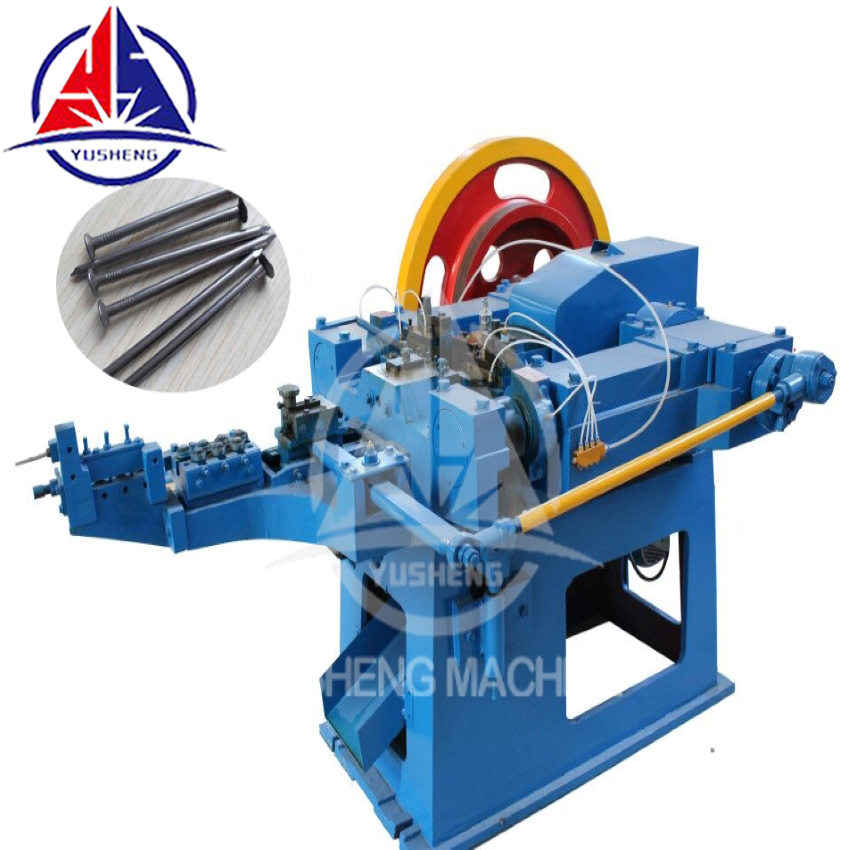

Automatic Nail making machine

Description:

This new type machine adopts plunger and oil pipe lubricating structure to ensure the high working speed, low noise and less impact. Especially, it can make the high quality coil nails used in the nail gun. It has the features of advanced design, compact conformation, and attractive appearance. It is easy and safe to operate.

Technique parameter

Type	YS1C	YS2C	YS3C	YS4C	YS5C	YS6C
Dia of nail max(mm)	2.0	2.8	3.4	4.5	5.5	6.5
Dia of nail min(mm)	0.9	1.2	1.8	2.8	3.1	3.4
Length of nail max(mm)	25	50	75	120	152	250
Length of nail min(mm)	9	16	30	50	70	100
Productivity(pcs/min)	460	320p	300	280	180-220	160-200
Motor power	1.5kw	2.2kw	3kw	4kw	5.5KW	11kw
Weight	1200kg	1450kg	1800 kg	2000 kg	2600KG	5500KS
Overal diamension (mm)	1500x1300 x1200	1700x1300 x1400	2000x1400 x1400	2200x1600 x1650	2600x1700 x1700	3250x1850 x1800

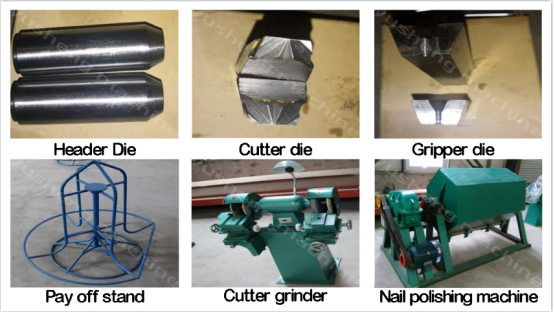

Accessory parts as flows

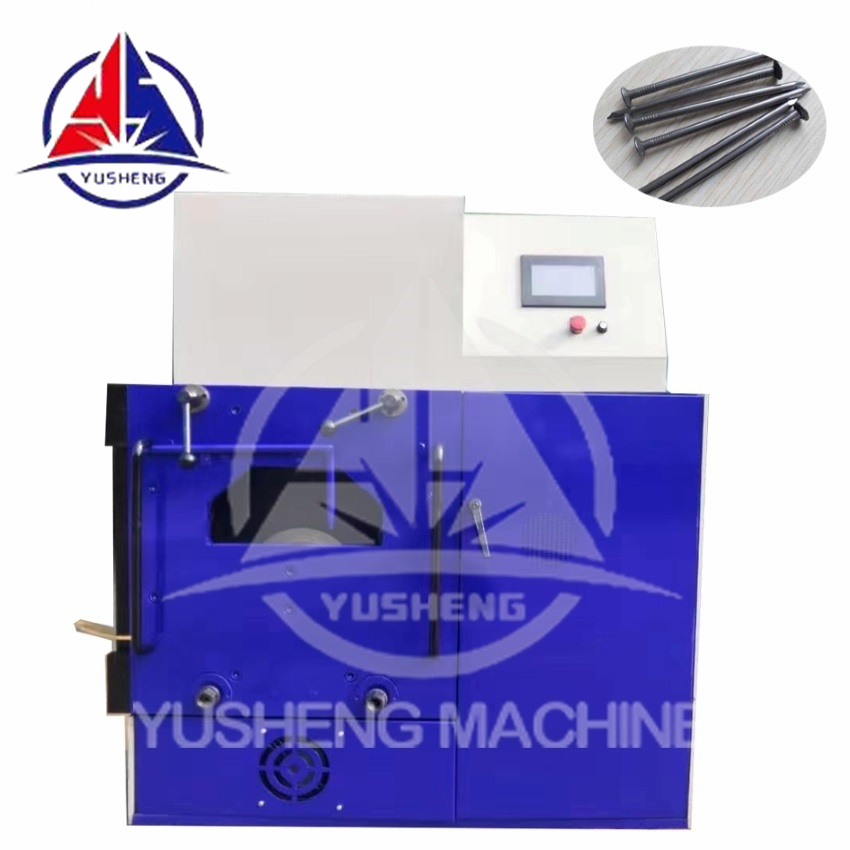

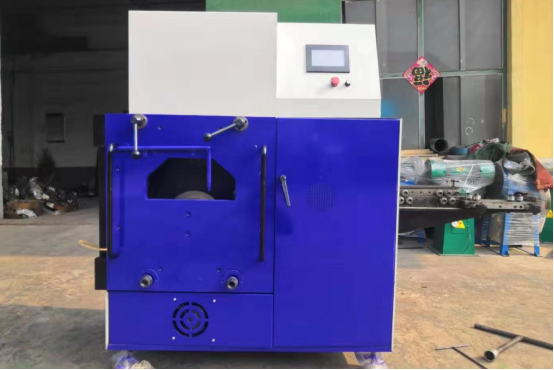

High speed Nail Making Machine

Type	YS1C	YS2C	YS3C
Dia of nail max(mm)	3.0	3.5	4.1
Dia of nail min(mm)	2.2	3.0	3.5
Length of nail max(mm)	100
Length of nail min(mm)
Productivity(pcs/min)	1500	1500	1200
Motor power	5.5kw	5.5kw	7.5kw
Weight	1200kg	1450kg	1800 kg
Overal diamension (mm)	1500x1300 x1200	1700x1300 x1400	2000x1400 x1400
