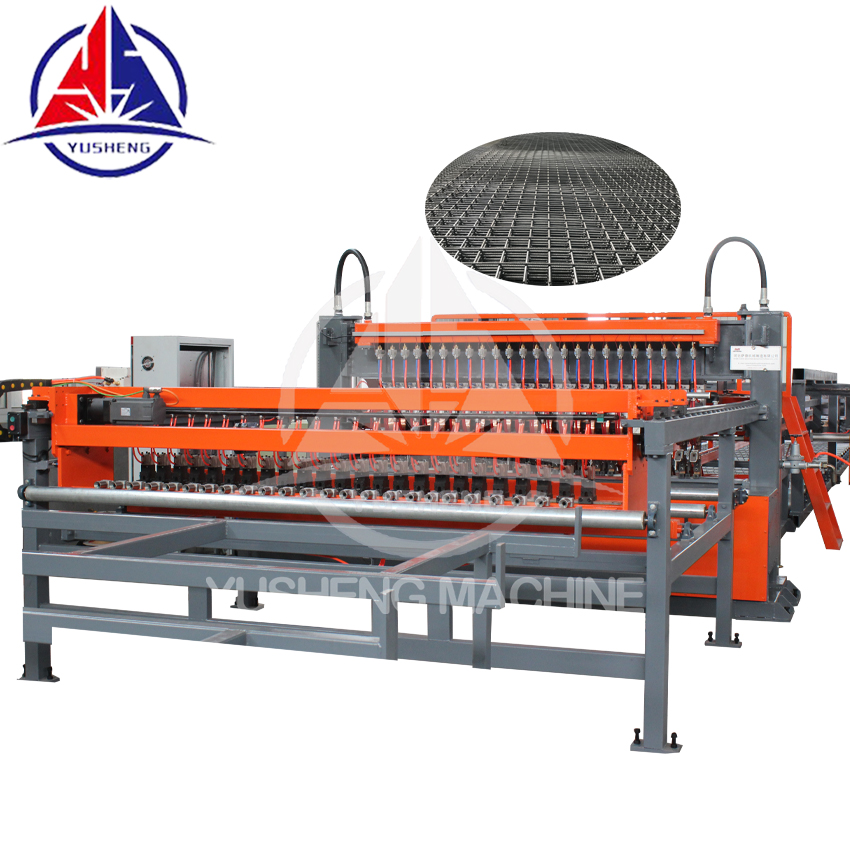

6-12mm reinforcing mesh welding machine

6-12mm Reinforcing mesh welding machine

Raw material:Black  wire,low carbon steel wire,etc.

It adopts the newest pneumatic welding system and imported force cylinders so that the welding speed can up to 70 times per minute.

Advantage:

1.Taiwan Delta PLC control and touch screen more stable.More technical parameters (such as speed,mesh size)can be set and adjusted on the touch screen.Very convenient for workers to operate.

2.Good CuCrZr of electrodes,transformer cooled by water.

3. Finished mesh can be roll and panel for choice

4.Longtitude wires are fed from roll wire or pre-cut wire  automatically by servo motor.Cross wire are feeding from precut wire and flowing from hopper automatically by step motor.

5.Finished mesh are pulling automatically by  servo motor.

6.Finished mesh panel automatic cutting or Finish mesh automatic rolling.

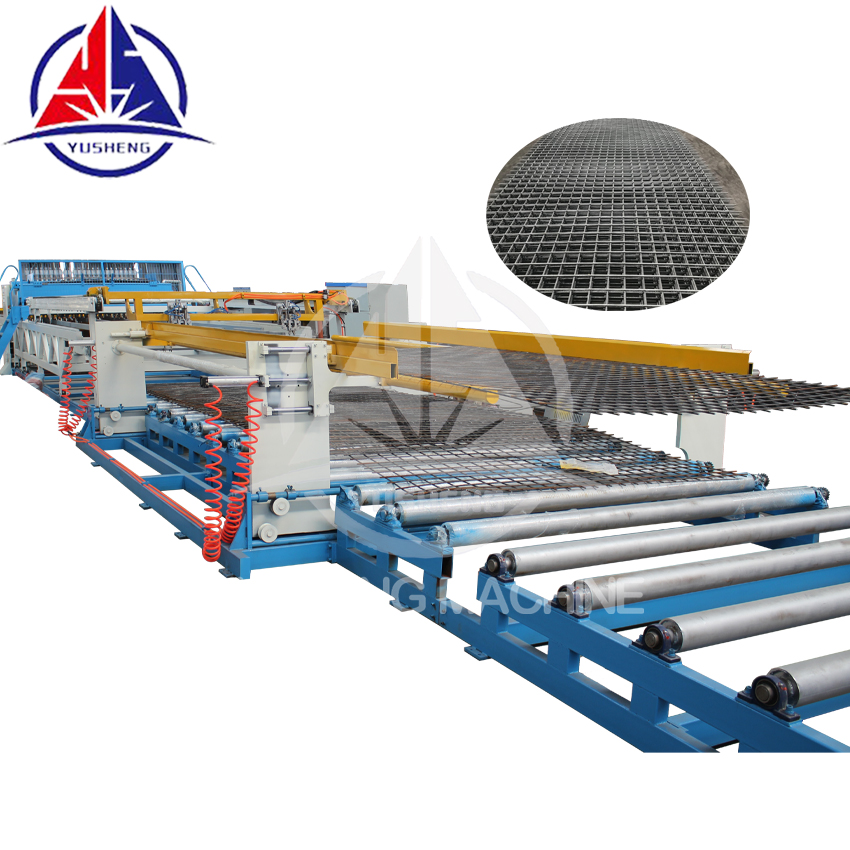

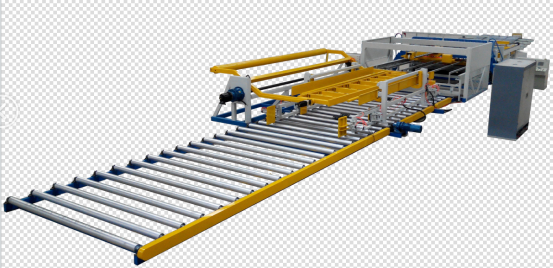

7.The finished panel can be automatic stacking and conveying .

Usage:

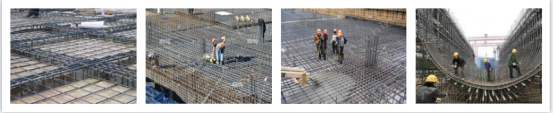

It is mainly used fence panle for railway,highway ,airport,construction fence in building ,bridge and so on .

Technique Parameter

Accessories for choice
